Monitoring Kafka with Prometheus and Grafana

This page describes the steps to quickly implement basic monitoring for Kafka Brokers using Prometheus and Grafana.


Monitoring Kafka with Prometheus and Grafana
Monitoring Kafka with Prometheus and Grafana

Enabling Prometheus for Kafka Brokers


Create a ConfigMap with the Kafka metrics to be scraped by Prometheus. A basic example can be found in this repository: https://github.com/confluentinc/jmx-monitoring-stacks/blob/6.0.1-post/jmxexporter-prometheus-grafana/assets/prometheus/jmx-exporter/kafka_broker.yml


Download the JMX exporter JAR file:

wget https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.15.0/jmx_prometheus_javaagent-0.15.0.jar

Create a Secret from the JAR file:

kubectl create secret generic sys-jmx-prometheus-jar --from-file jmx_prometheus_javaagent-0.15.0.jar

The Secret is used because I didn't want to customise the Kafka Broker Docker image.


Add the ConfigMap and Secret to the Statefulset manifest file:

...
volumeMounts:
- mountPath: /etc/prometheus
  name: jmx-config
  readOnly: true
- mountPath: /etc/prometheus/jar
  name: jmx-prometheus-jar
  readOnly: true
...
volumes:
...
- configMap:
    defaultMode: 420
    name: sys-kafka-jmx-configmap
  name: jmx-config
- name: jmx-prometheus-jar
  secret:
    defaultMode: 420
    secretName: sys-jmx-prometheus-jar
...

Add the Prometheus configuration files to the KAFKA_OPTS variable at startup:

-javaagent:/etc/prometheus/jar/jmx_prometheus_javaagent-0.15.0.jar=9404:/etc/prometheus/jmx-kafka-prometheus.yml

The default port used by JMX exporters is 9404 (if you do not add them explicitly).


Prometheus


The next yaml file install Prometheus version 2.44.0. It also creates a PersistentVolume to store the collected metrics, and a ConfigMap with the Kafka Broker addresses to scrape (scrape_configs).


---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: prometheus-vol
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi
  storageClassName: px-sc-general
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-server-conf
  labels:
    name: prometheus-server-conf
data:
  prometheus.yml: |-
    global:
      scrape_interval: 60s
      evaluation_interval: 60s
      scrape_timeout: 60s
    rule_files:
      - /etc/prometheus/prometheus.rules
    scrape_configs:
      - job_name: 'kafka'
        static_configs:
          - targets:
              - "kafka-0.dev-kafka-headless.kafka.svc.cluster.local:9404"
              - "kafka-1.dev-kafka-headless.kafka.svc.cluster.local:9404"
              - "kafka-2.dev-kafka-headless.kafka.svc.cluster.local:9404"
            labels:
              env: "dev"
---
apiVersion: v1
kind: Service
metadata:
  name: prometheus-service
  annotations:
      prometheus.io/scrape: 'true'
      prometheus.io/port:   '9090'

spec:
  selector:
    app: prometheus-server
  type: NodePort
  ports:
    - port: 8080
      targetPort: 9090
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-deployment
  labels:
    app: prometheus-server
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus-server
  template:
    metadata:
      labels:
        app: prometheus-server
    spec:
      containers:
        - name: prometheus
          image: prom/prometheus
          args:
            - "--config.file=/etc/prometheus/prometheus.yml"
            - "--storage.tsdb.path=/prometheus/"
            - "--storage.tsdb.retention.time=10d"
            - "--storage.tsdb.retention.size=50GiB"
          ports:
            - containerPort: 9090
          resources:
            limits:
              cpu: "1"
              memory: 1400Mi
            requests:
              cpu: 250m
              memory: 512Mi
          volumeMounts:
            - name: prometheus-config-volume
              mountPath: /etc/prometheus/
            - name: prometheus-storage-volume
              mountPath: /prometheus/
      securityContext:
        fsGroup: 65534
        runAsGroup: 65534
        runAsNonRoot: true
        runAsUser: 65534
      volumes:
        - name: prometheus-config-volume
          configMap:
            defaultMode: 420
            name: prometheus-server-conf
        - name: prometheus-storage-volume
          persistentVolumeClaim:
            claimName: prometheus-vol


Grafana


The next yaml file install Grafana 9.5.3 and creates a ConfigMap that creates a datasource for the Prometheus we installed before.


---
apiVersion: v1
kind: ConfigMap
metadata:
  name: grafana-datasources
data:
  prometheus.yaml: |-
    {
        "apiVersion": 1,
        "datasources": [
            {
               "access":"proxy",
                "editable": true,
                "name": "prometheus",
                "orgId": 1,
                "type": "prometheus",
                "url": "http://prometheus-service.kafka.svc:8080",
                "version": 1
            }
        ]
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      name: grafana
      labels:
        app: grafana
    spec:
      containers:
      - name: grafana
        image: grafana/grafana:9.5.3
        ports:
        - name: grafana
          containerPort: 3000
        resources:
          limits:
            memory: "1Gi"
            cpu: "500m"
          requests:
            memory: 500M
            cpu: "500m"
        volumeMounts:
          - mountPath: /var/lib/grafana
            name: grafana-storage
          - mountPath: /etc/grafana/provisioning/datasources
            name: grafana-datasources
            readOnly: false
      volumes:
        - name: grafana-storage
          emptyDir: {}
        - name: grafana-datasources
          configMap:
              defaultMode: 420
              name: grafana-datasources
---
apiVersion: v1
kind: Service
metadata:
  name: grafana
  annotations:
      prometheus.io/scrape: 'true'
      prometheus.io/port:   '3000'
spec:
  selector:
    app: grafana
   type: NodePort
   ports:
     - port: 3000
       targetPort: 3000

Visualising Metrics


In the newly installed Grafana, create a dashboard to show Kafka Broker metrics.

A basic example can be found in this repository:

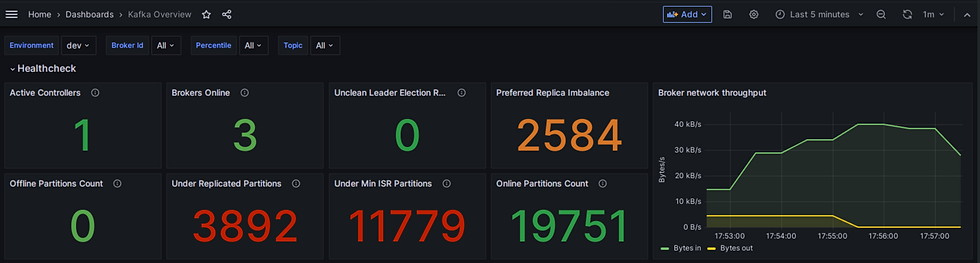

This is an example of how the dashboard looks like:

Kafka Broker Grafana dashboard
Kafka Broker Grafana dashboard

That's it! With a few steps you're already monitoring your Kafka Broker!
